INTRODUCTION

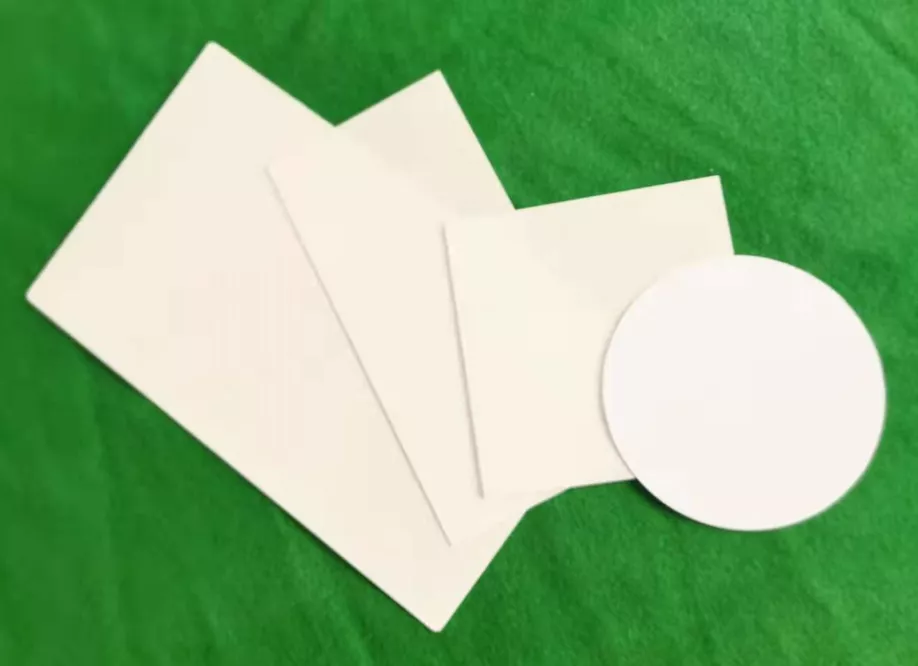

WT106 series plastic scintillators are used for the measurement of α and β rays. This scintillator is sprayed with a certain thickness of ZnS (Ag) on the surface of the WT102, generally the thickness is 5mg/cm2.


WT102 is used to measure β rays, silver activated zinc sulfide is used to measure α rays, and a ZnS (Ag) coating of appropriate thickness just absorbs α rays.

The WT106 series plastic scintillator adopts advanced spraying technology to ensure its excellent uniformity and good consistency.


SPECIFICATIONS


SPECIFICATIONSTechnical Index
WT106ZnS(Ag)
Polymer BasePolyvinyltolueneZnS(Ag)
Density (g/cm3)1.0234.1
Refractive Index1.58
Light Output (% Anthracene)64280
Decay Time (ns)2.3200
Wavelength of Maximum Emission (nm)423
450
Operating temperature (℃)-40～55
Layer thickness(mg/cm2)
5

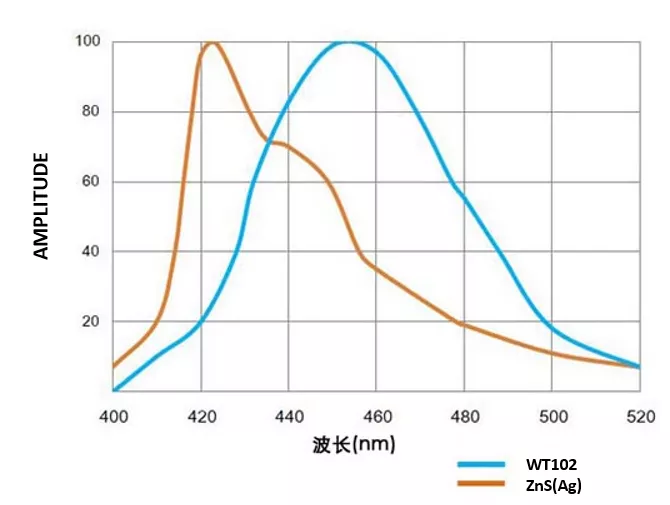

EMISSION SPECTRUM
